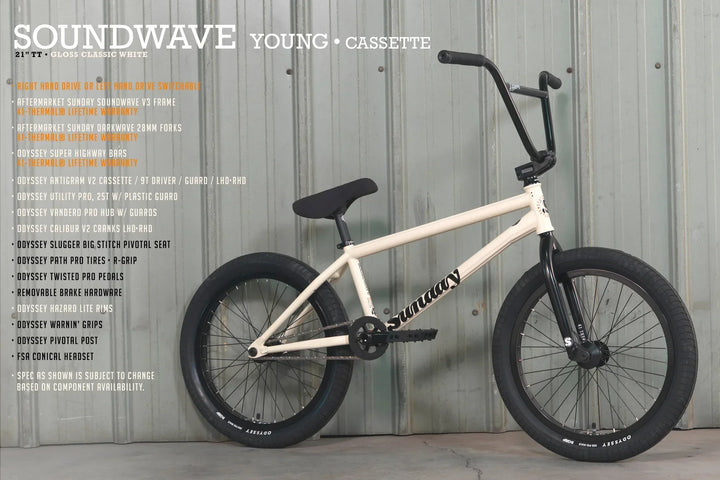

This is the best complete bike that money can buy. Now available with a cassette!
The 2022 Soundwave Special continues to offer the unmatched 41-Thermal® Lifetime Warranty on its Soundwave frame, Darkwave fork, Super Highway bars, and Thunderbolt cranks. Combine that with a long list of Odyssey parts, and you easily have a bike with no equals.
Gary Young rips on this bike daily for a reason. Follow @garybyoung.
Key Features
- 100% aftermarket
- 41-Thermal® Lifetime Warranty on Frame, Fork, Bars, and Cranks
- Sunday Soundwave v3 Frame
- Sunday Darkwave Forks
- Odyssey Super Highway Bars
- Odyssey Calibur v2 Cranks
- Odyssey Utility Pro Sprocket
- Odyssey Hazard Lite Rims
- Odyssey Antigram v2 Cassette
- Odyssey Path Pro Tires
- Right Hand or Left Hand Drive
Specifications
Frame: Sunday Soundwave v3, 21" top tube, 100% chromoly aftermarket frame, 41-Thermal® lifetime warranty, removable brake hardware
Fork: Sunday Darkwave, 20", 100% chromoly aftermarket fork, 41-Thermal® lifetime warranty, 28mm offset
Handlebar: Odyssey Super Highway,100% chromoly aftermarket bar, 2-piece
Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Monolever
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Odyssey Warnin'
Seat: Odyssey Slugger Stitch, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Sunday aftermarket
Sprocket: Odyssey Utility Pro, 25T w/ plastic guard
Cranks: Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD Compatible
BB Parts: Sealed, Mid, 22mm
Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20", 36H

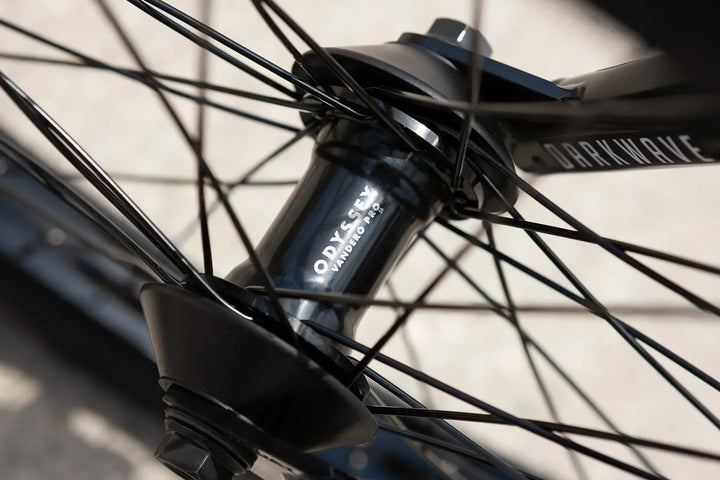

Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub: Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD Switchable, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro, aftermarket, 20 x 2.4" (F & R)
Chain: KMC Z1 eHX-W
Approx. Weight: 23.41lbs (brakeless)
Frame Geometry
Top Tube Length: 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2" - 13.5"
Bottom Bracket Height: 11.5"
Standover: 9”
Handlebar Geometry
Rise: 9.5"
Width: 29"
Backsweep: 11°
Upsweep: 1°
*Specs subject to change without notice.
