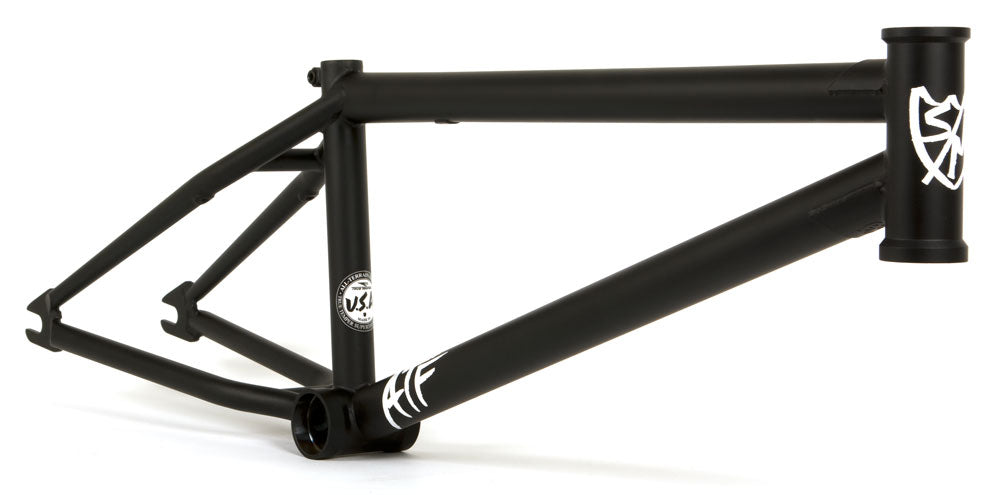

S&M ATF Frame Black
- Free shipping over £100
- In stock, ready to ship
- Backordered, shipping soon
This is the base model most of S&Ms pro signature frames have started from for a while now. It is also the basic custom frame most of their employees ride. It is a little stronger and heavier than some of the frames on the market but it is what people that really ride want. Stylish classic and burly all rolled up into one.
- Top Tube Lengths - 20" 20.5" 20.75" 21" 21.25"21.5"22"
- Rear End Length - 13.4"-13.875"
- Head Tube Angle - 75deg
- Head Tube Style - Integrated (45deg x 45deg 41.8mm)
- Seat Tube Angle - 71deg
- Seat Clamp - Integrated
- Seat Post Size - 25.4mm
- Bb Height - 11.7"
- Bb Style - Mid W Ez-Out Punch Slots
- Standover Height - 8.5"
- Brake Mounts - Thread-On 990 (Mounts Sold Separately) Dropouts - 14mm Slot 4Q-Baked
