S&M Bikes

S&M Mad Dog Frame Holmes Yellow

Name: S&M Mad Dog Frame Holmes Yellow
Brand: S&M Bikes
SKU: FRSM64YE205
Price: 599.99 GBP
Availability: OutOfStock

Regular price£599.99

Tax included. Shipping calculated at checkout.

Colour

Holmes Yellow

Top Tube

20.5"

21"

21.125"

21.25"

21.5"

21.75"

22"

20.75"

Wheel Size

20"

Free shipping over £100

In stock, ready to ship
Backordered, shipping soon

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The all new Mad Dog Frame from S&M available soon.

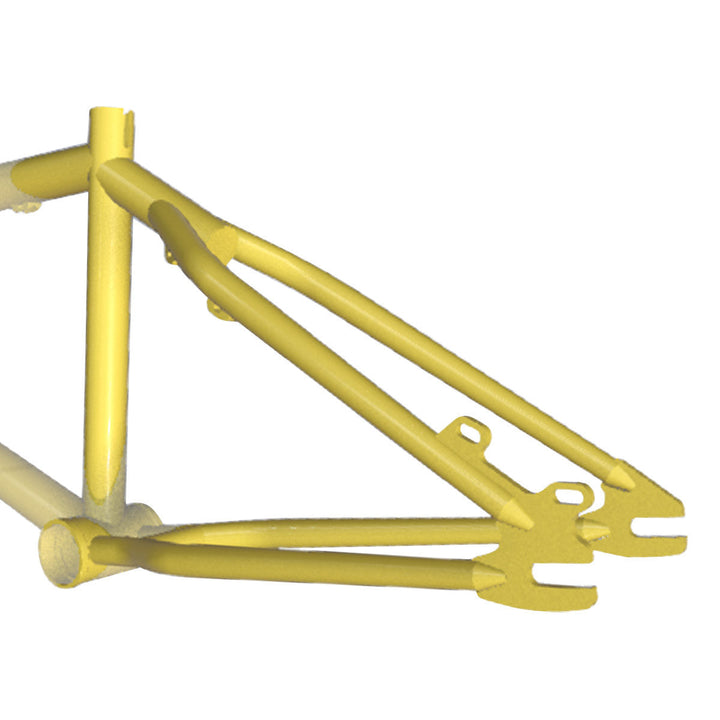

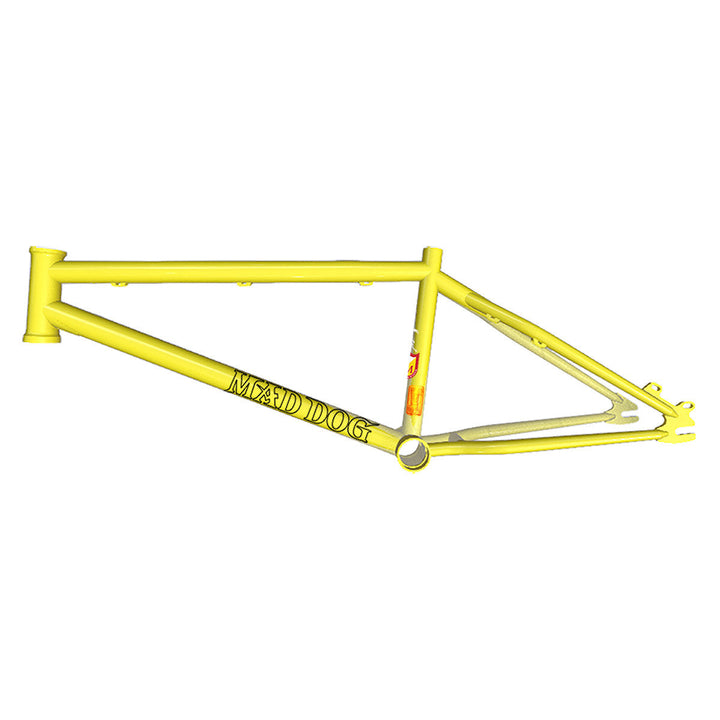

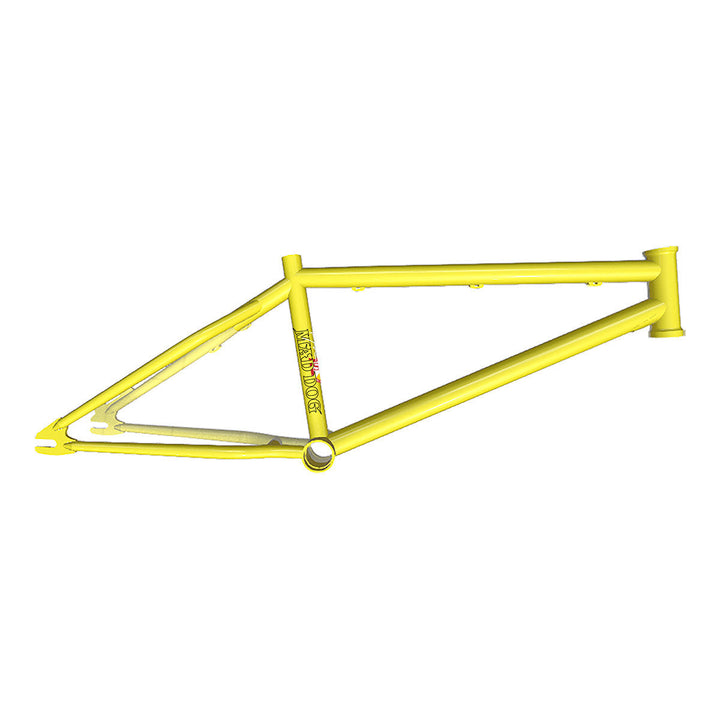

(images are mock-ups)

Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.

Engraved Shield on Headtube. Engraved '87' on BB shell. MAD DOG-tag on seat-tube

Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor, 140mm rotor requires a 20mm IS to POST mount adaptor. Max sprocket size with proper chain alignment is 39 tooth. Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp. Rear drop-out spacing is traditional BMX 110mm.

TOP TUBE LENGTHS: 20.5" 20.75" 21" 21.125" 21.25" 21.5" 21.75" 22"
REAR END LENGTH: 13.9"
HEAD TUBE ANGLE: 74.25°
STANDOVER HEIGHT: 10"
B.B. HEIGHT: 11.6"
SEAT TUBE ANGLE: 71°
HEAD TUBE: 5" Tall Integrated Campy Style
B.B. STYLE: Mid
BRAKE MOUNTS: Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor
DROPOUTS: 3/8"
SEAT POST SIZE: 1" / 25.4mm
WEIGHT: 4.9 lbs

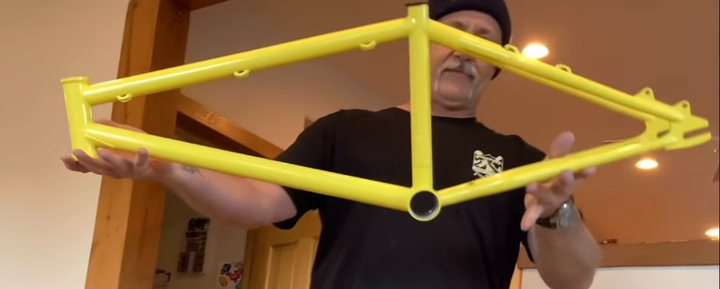

For a sneak peak and to hear a little more from the man himself check out the latest Factory Friday video (skip to 3:36)
