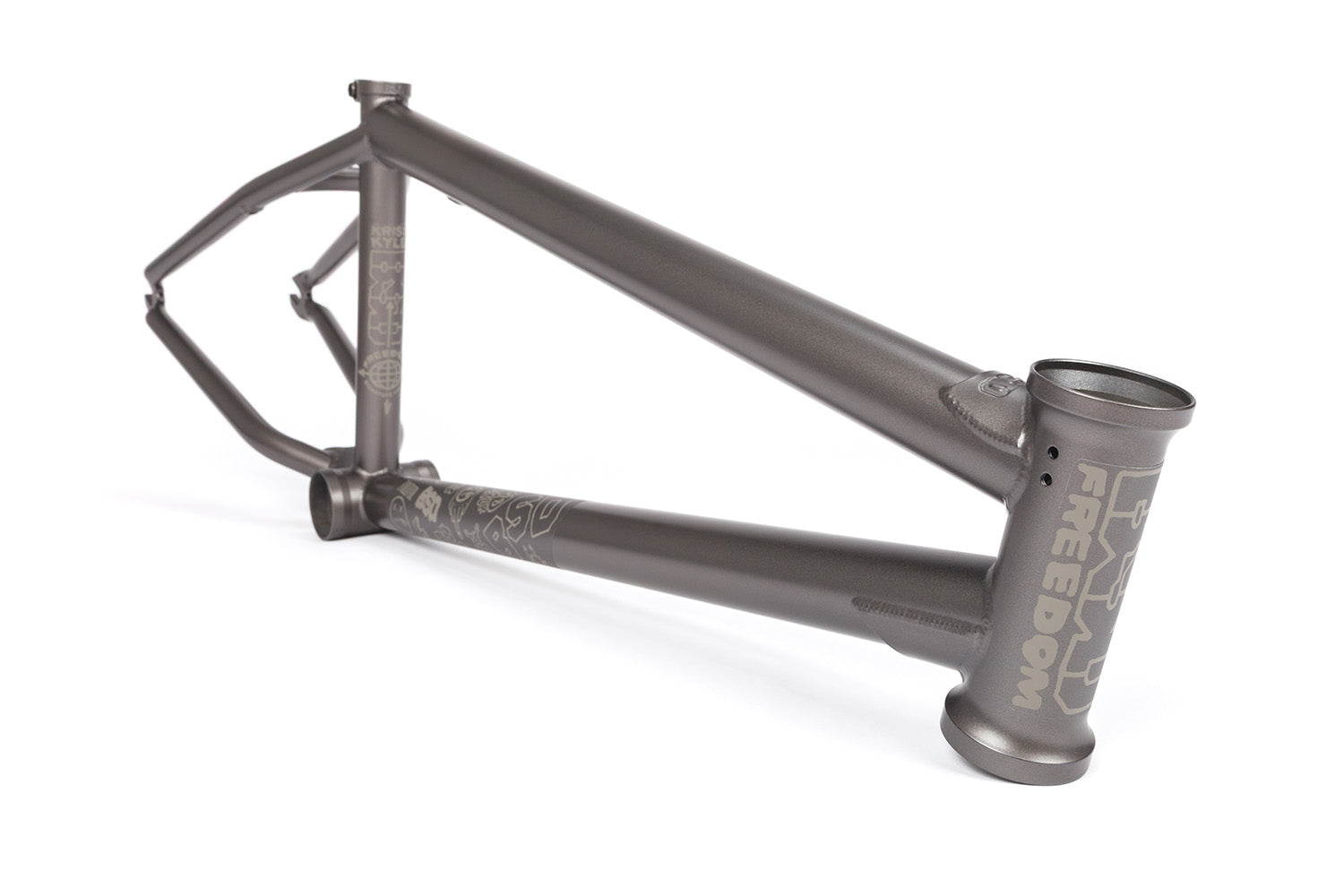

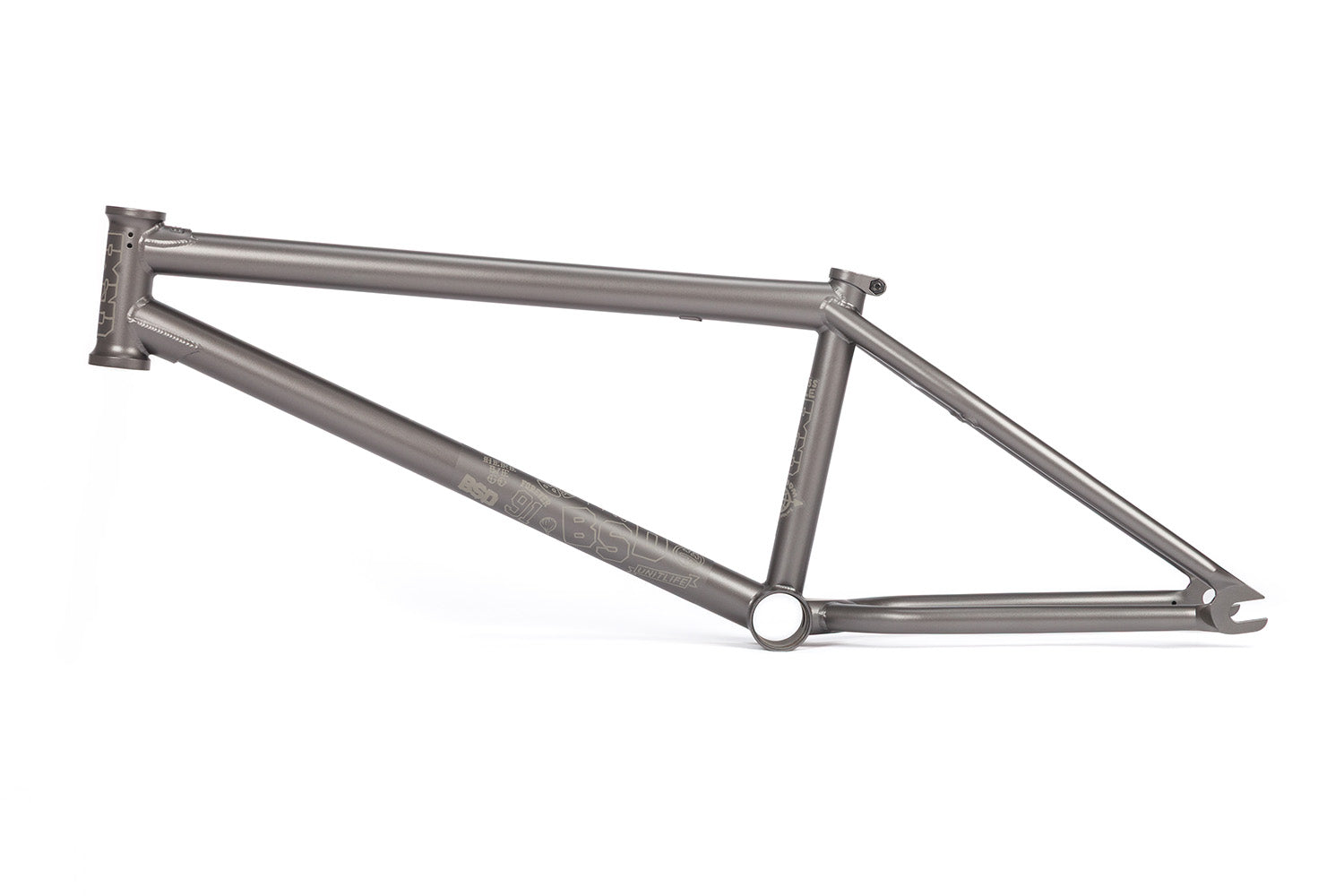

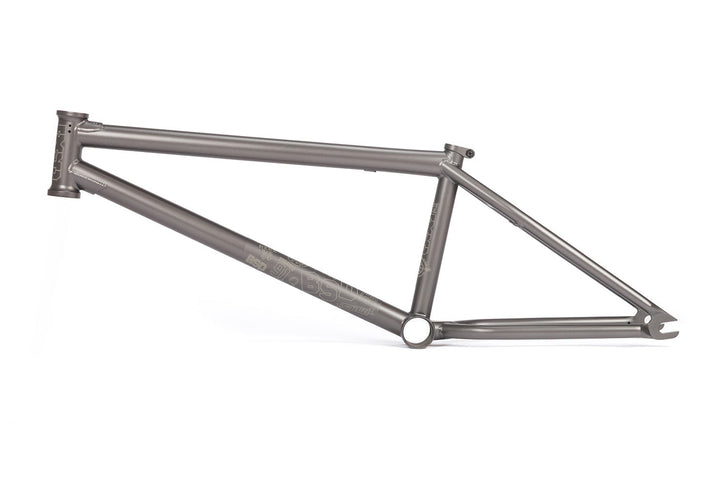

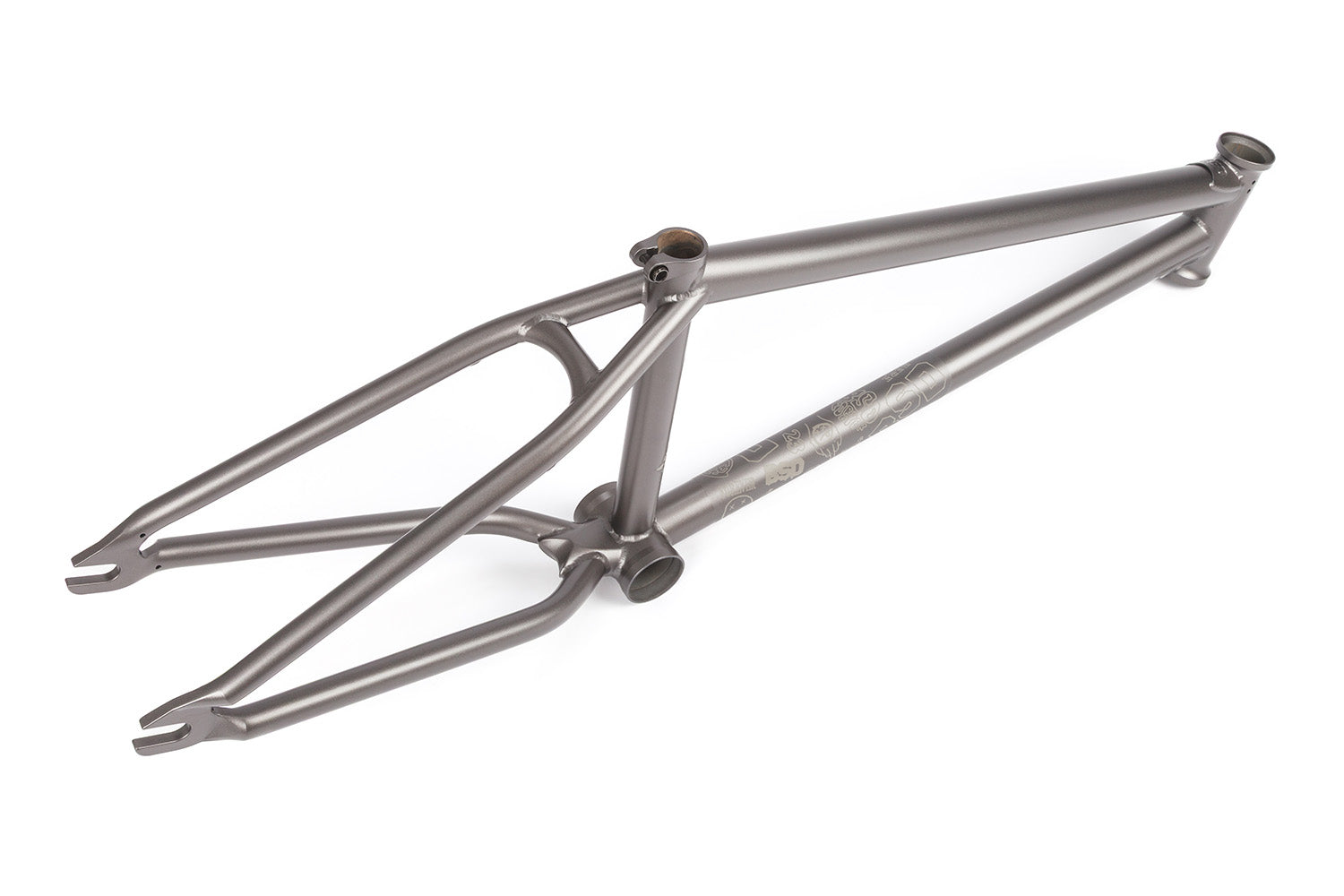

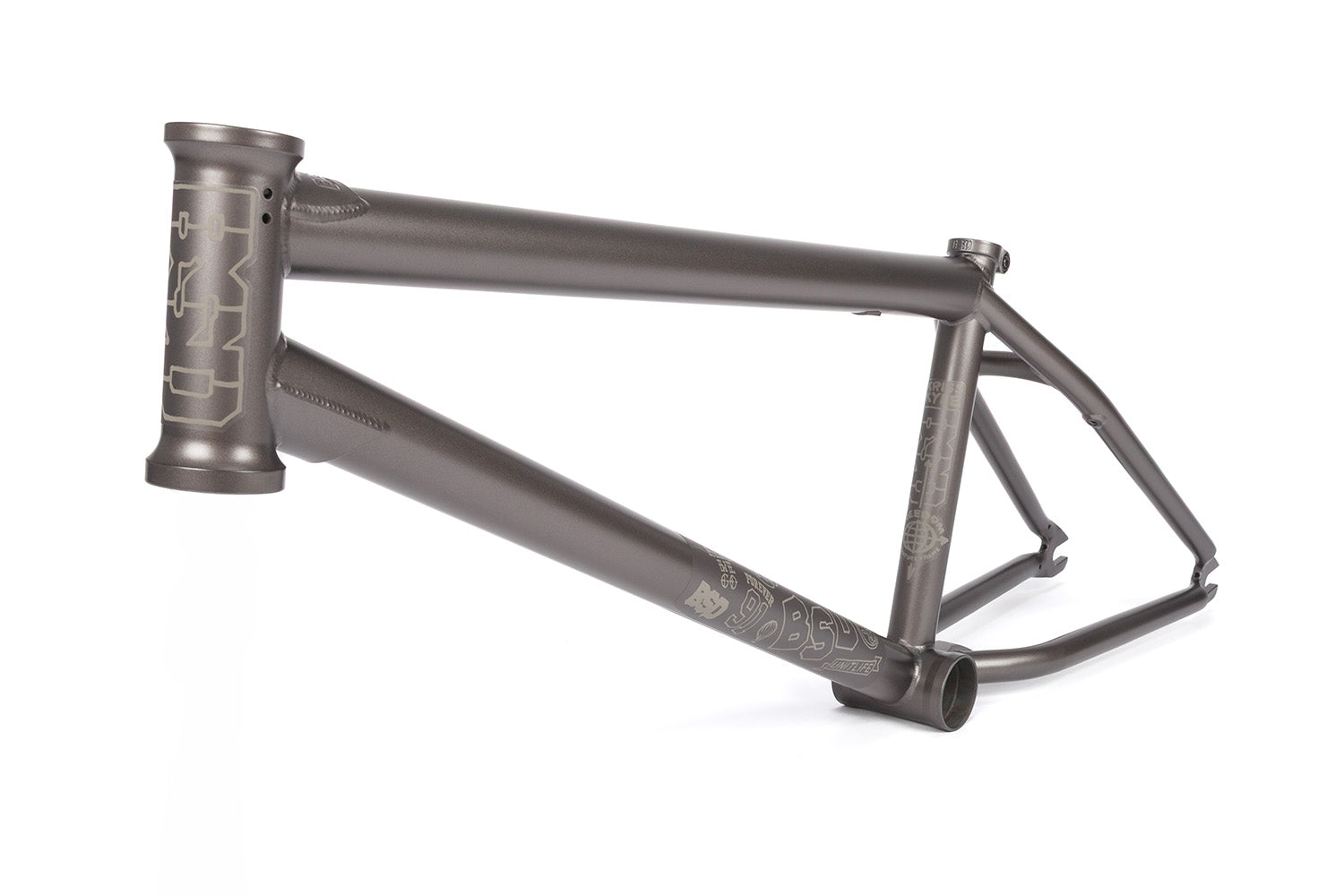

BSD Freedom Frame 2026

Kriss Kyle is the type of rider who likes to ride it all—bowls, street, dirt, you name it. His signature BSD Freedom frame is built to perform on any terrain. It combines the stability of a low 11.5" BB, the responsiveness of a 75° head angle, and the versatility of a short rear end. To enhance rear triangle stiffness, we’ve incorporated an invest-cast wishbone and invest-cast seatstay bridge—perfect for those sideways landings!

Key Features:

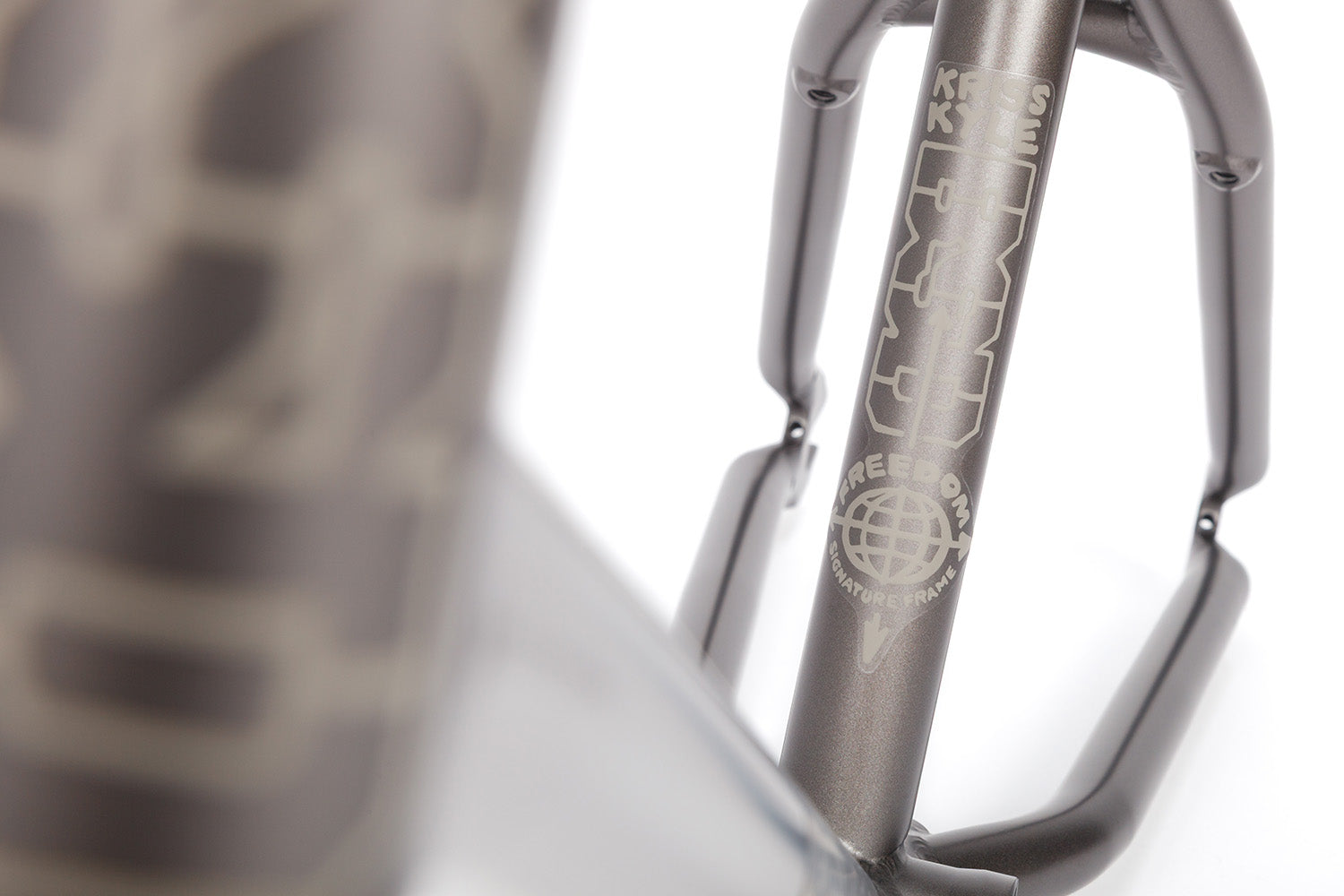

• Kriss Kyle signature frame, built for all-terrain riding
• Low 11.5" BB for added stability

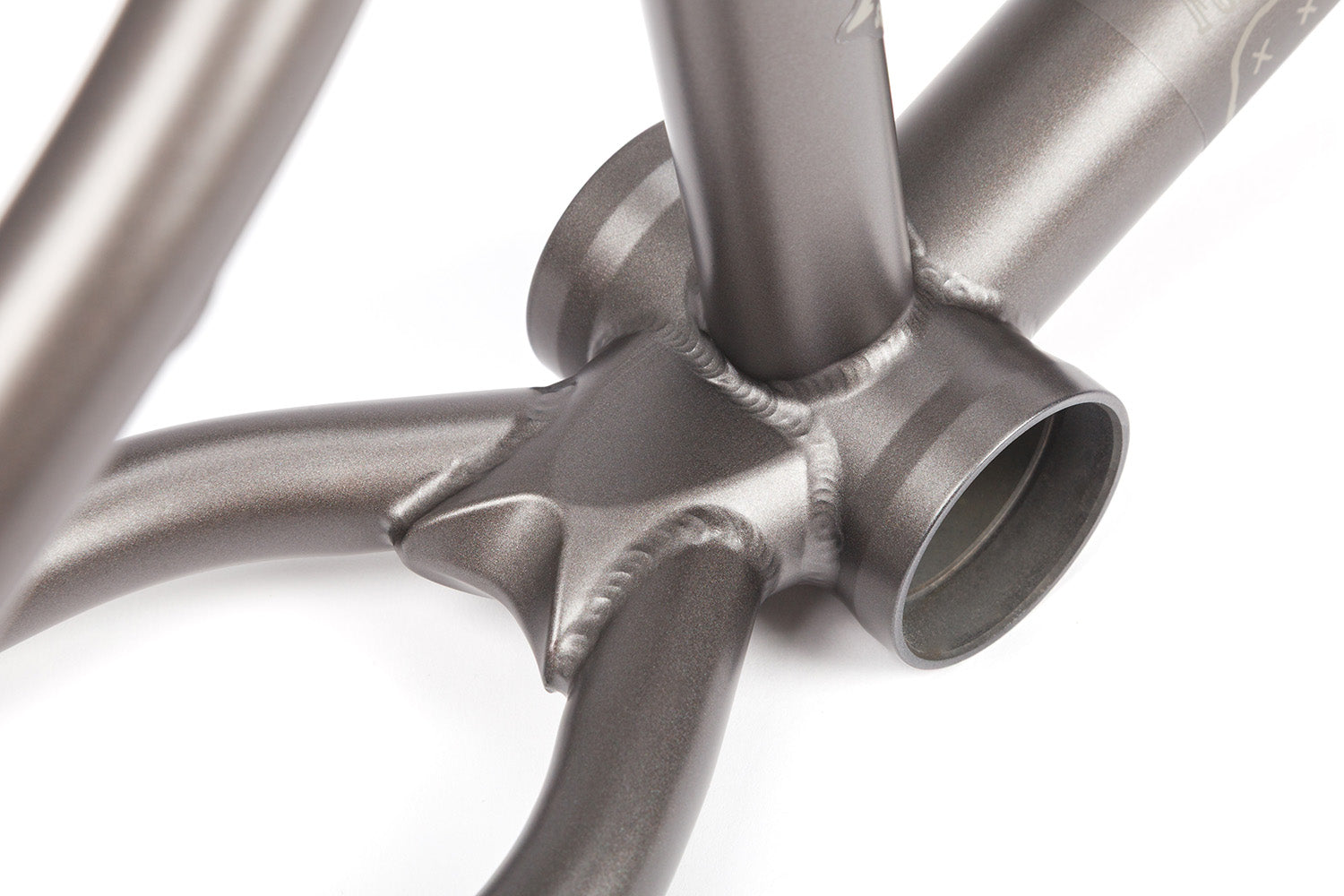

• Invest cast wishbone and seatstay bridge for a stiffer rear end

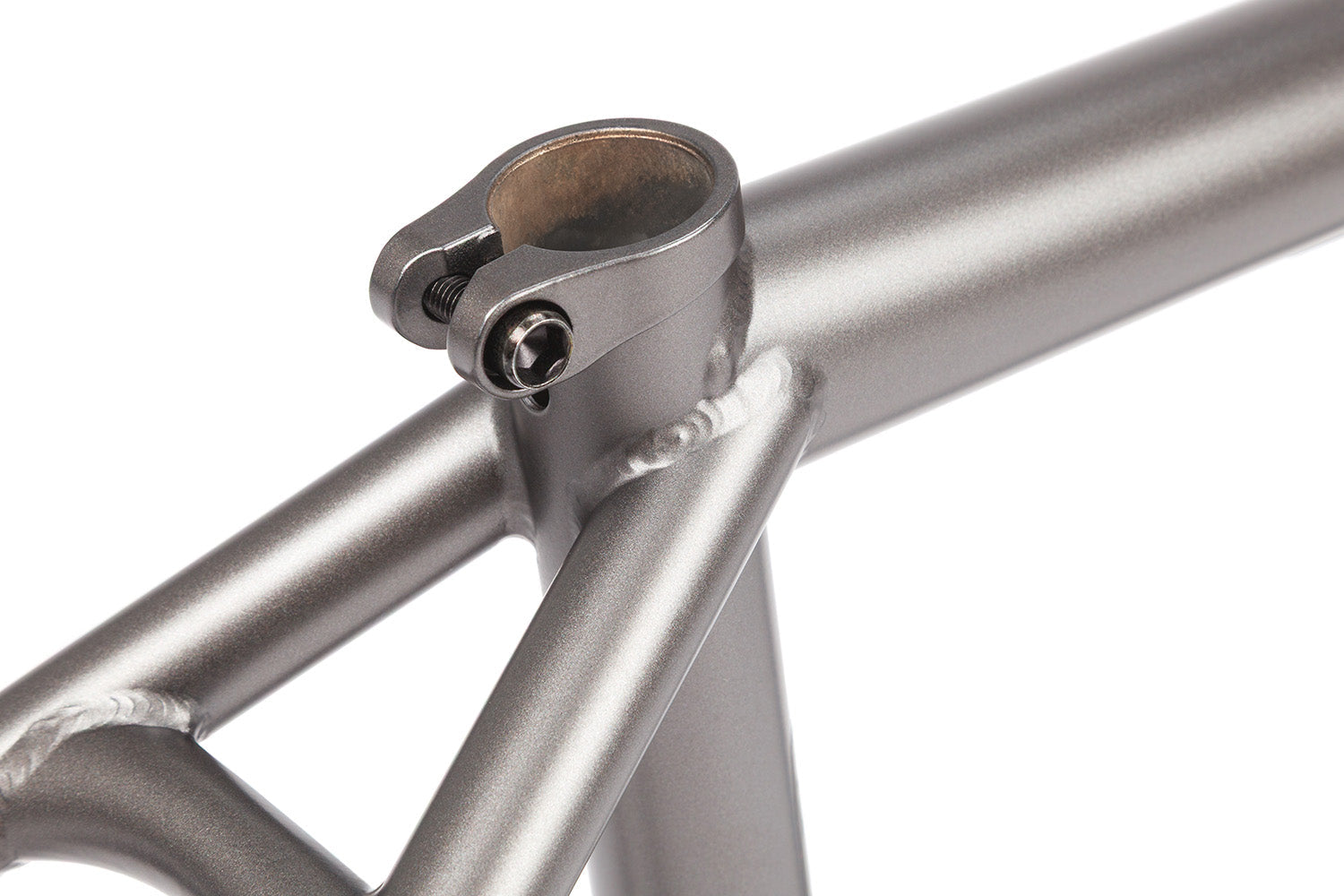

• Invest cast seatclamp brazed onto the frame
• Invest cast dropouts with integrated chain tensioner bolts
• Removable brake mounts (brake kit available separately)
• Sanko Japanese seamless, triple-butted 4130 CrMo tubing

Product Specs:

• Toptube Lengths: 20.2" / 20.5" / 20.8" / 21.1" / 21.5"
• Headtube Angle: 75°
• Headtube Length: 117mm
• Seattube Angle: 69.5°
• Rear End Length: 13.2"–13.625"
• BB Height: 11.5"
• Standover Height: 9"
• Weight: 5 lbs
• Brake Mounts: Removable (brake kit sold separately)
• Tubing: Sanko Japanese seamless 4130 CrMo, triple-butted

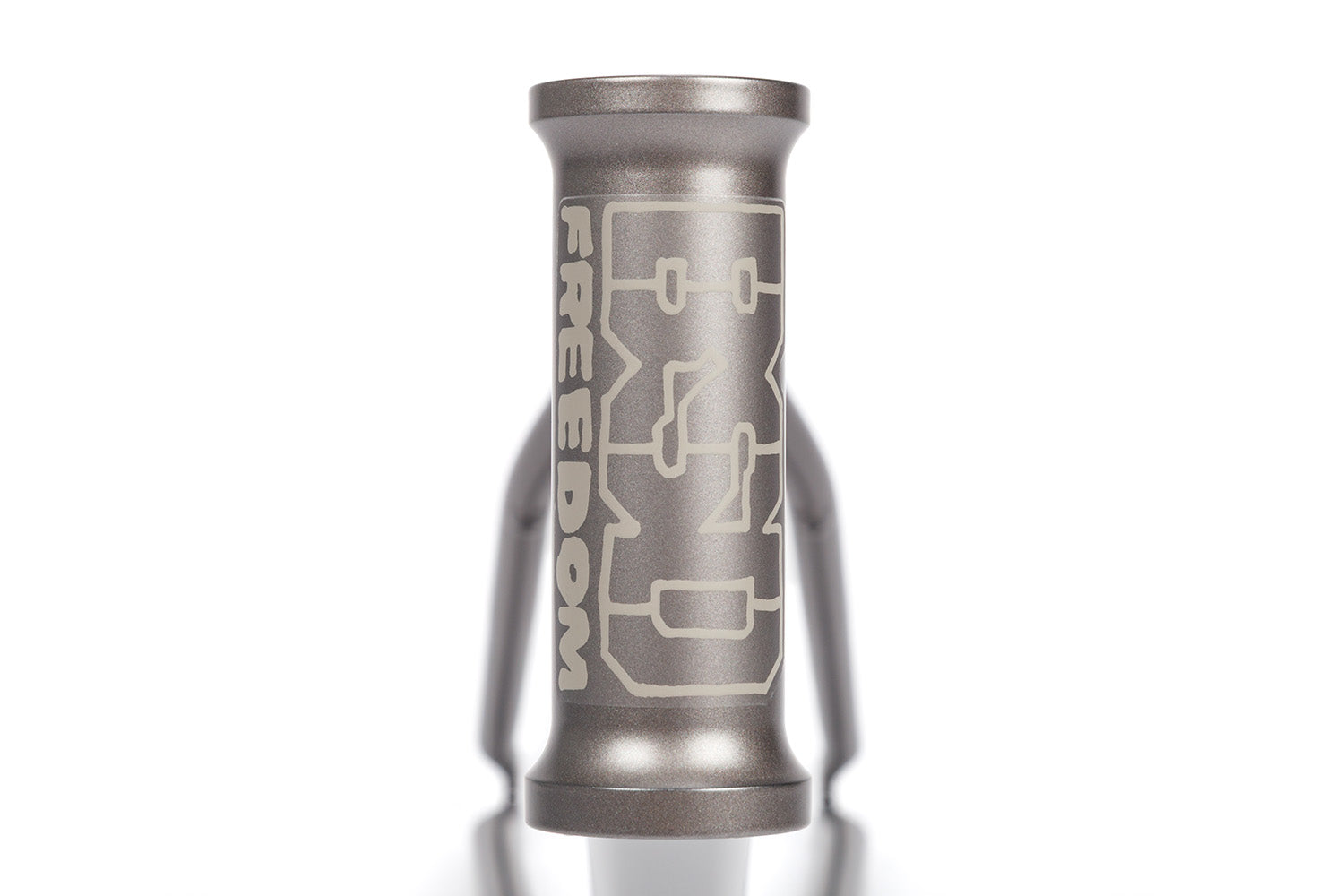

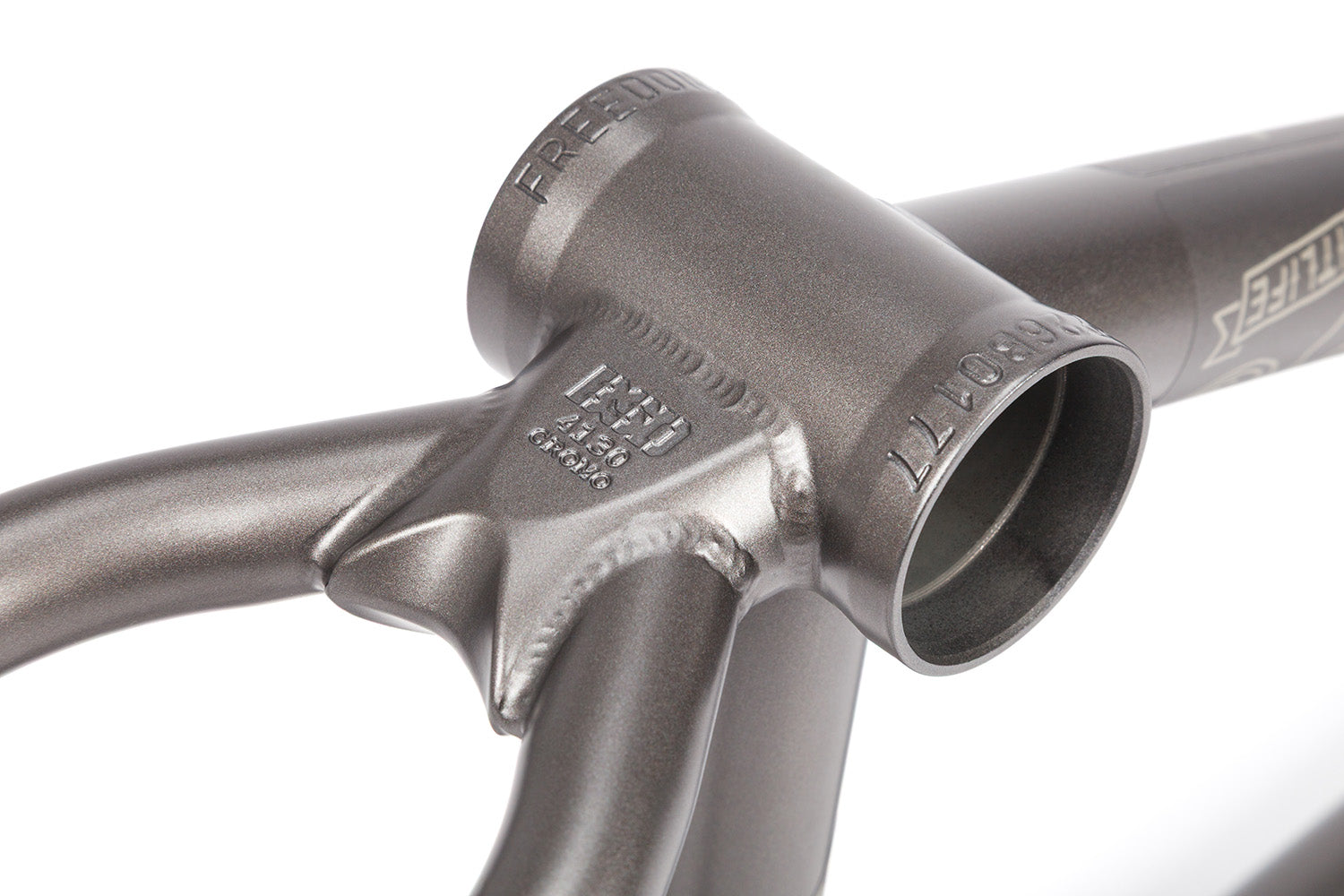

• Headtube: Heat-treated 4130 CrMo, CNC machined, offset thickness
• Bottom Bracket: Heat-treated 4130 CrMo, CNC machined
• Chainstay Wishbone: Heat-treated 4130 CrMo, invest cast
• Dropouts: Heat-treated 4130 CrMo, invest cast
• Seatclamp: Heat-treated 4130 CrMo, invest cast

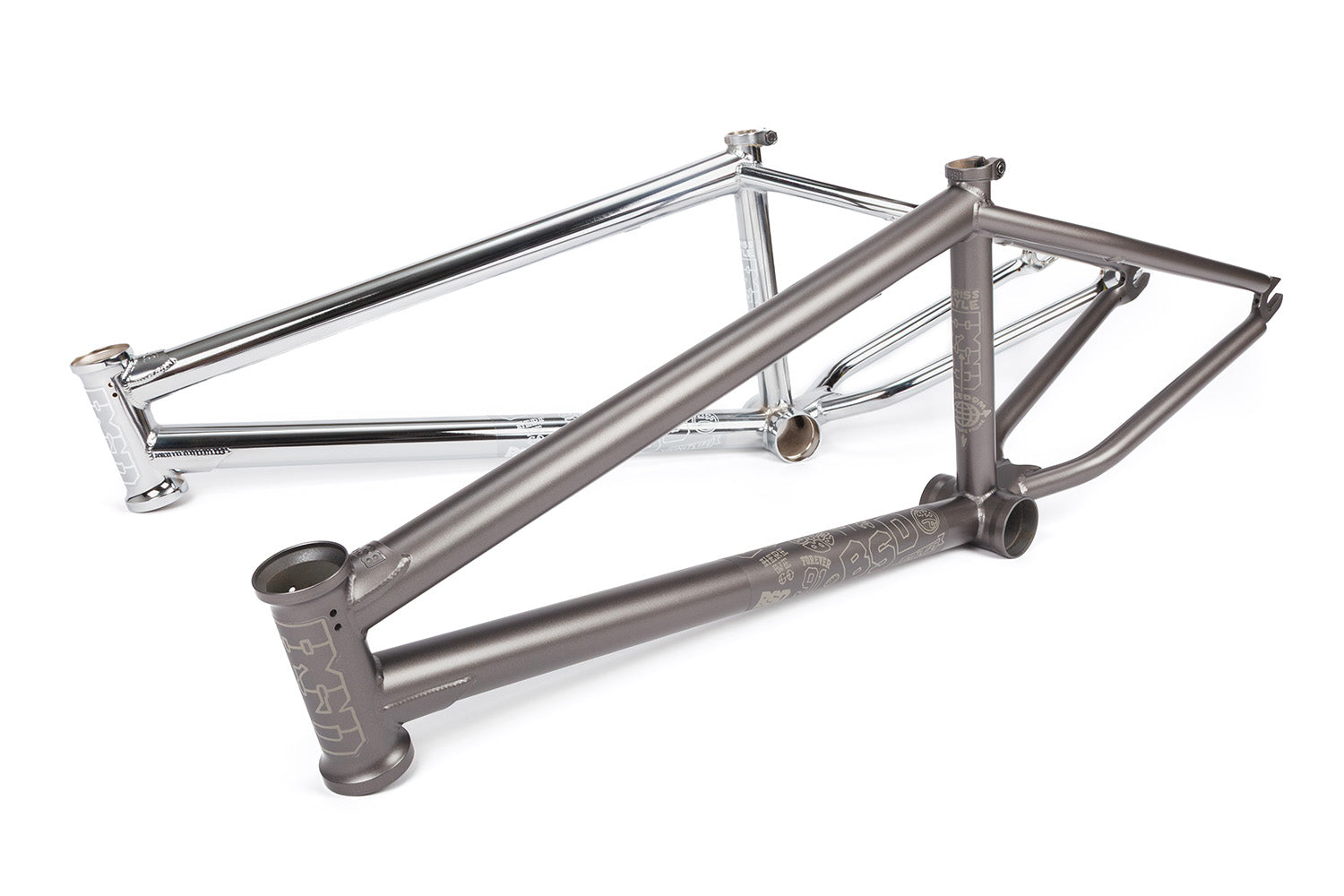

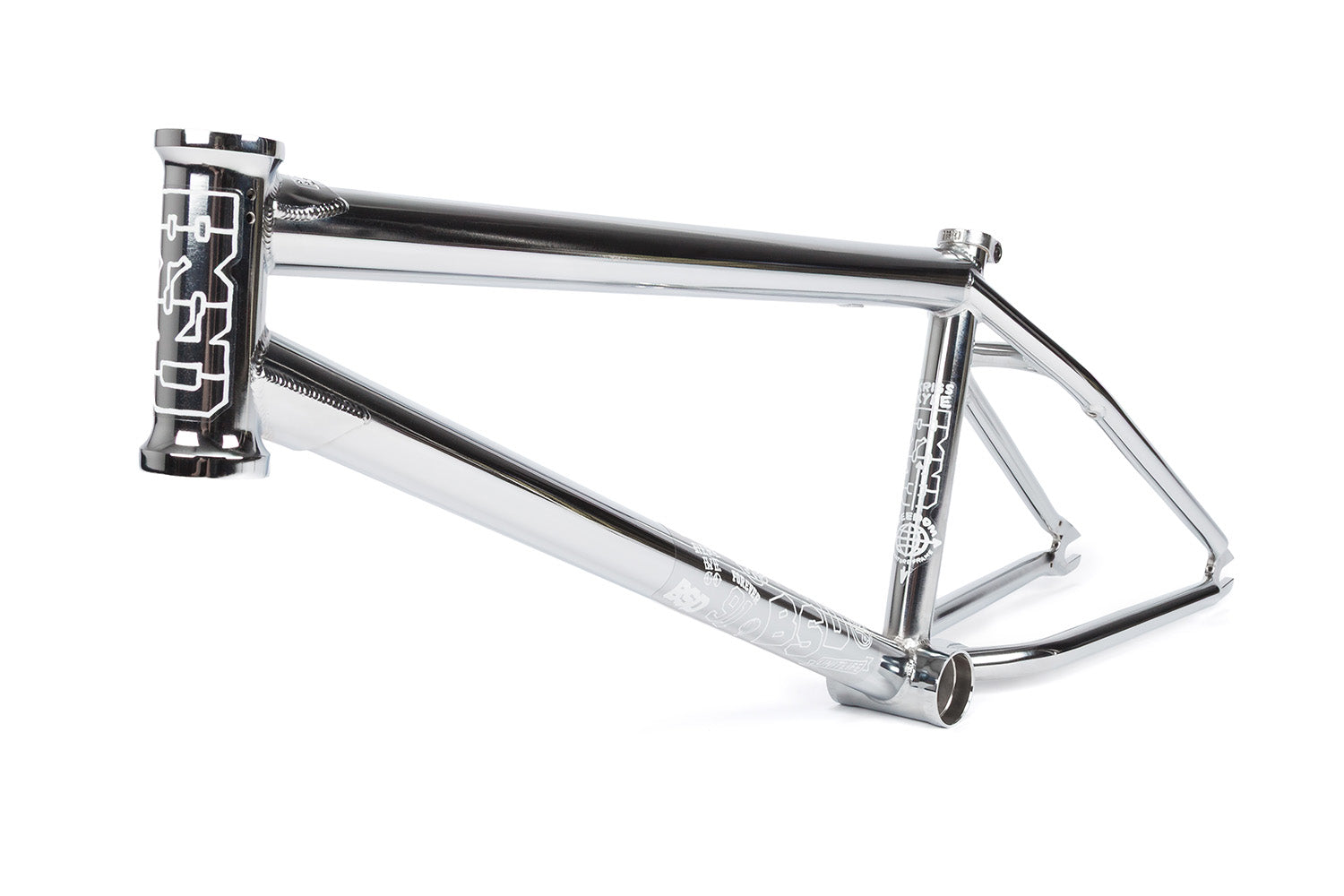

• Colours: Metallic Graphite / Chrome / Flat Raw
