Name: Odyssey Antigram v2 Cassette Hub
Brand: Odyssey
SKU: W-422-BK
Price: 176.39 GBP
Availability: InStock

£179.99 £176.39 Save £3.60

Tax included. Shipping calculated at checkout.

Colour

Black

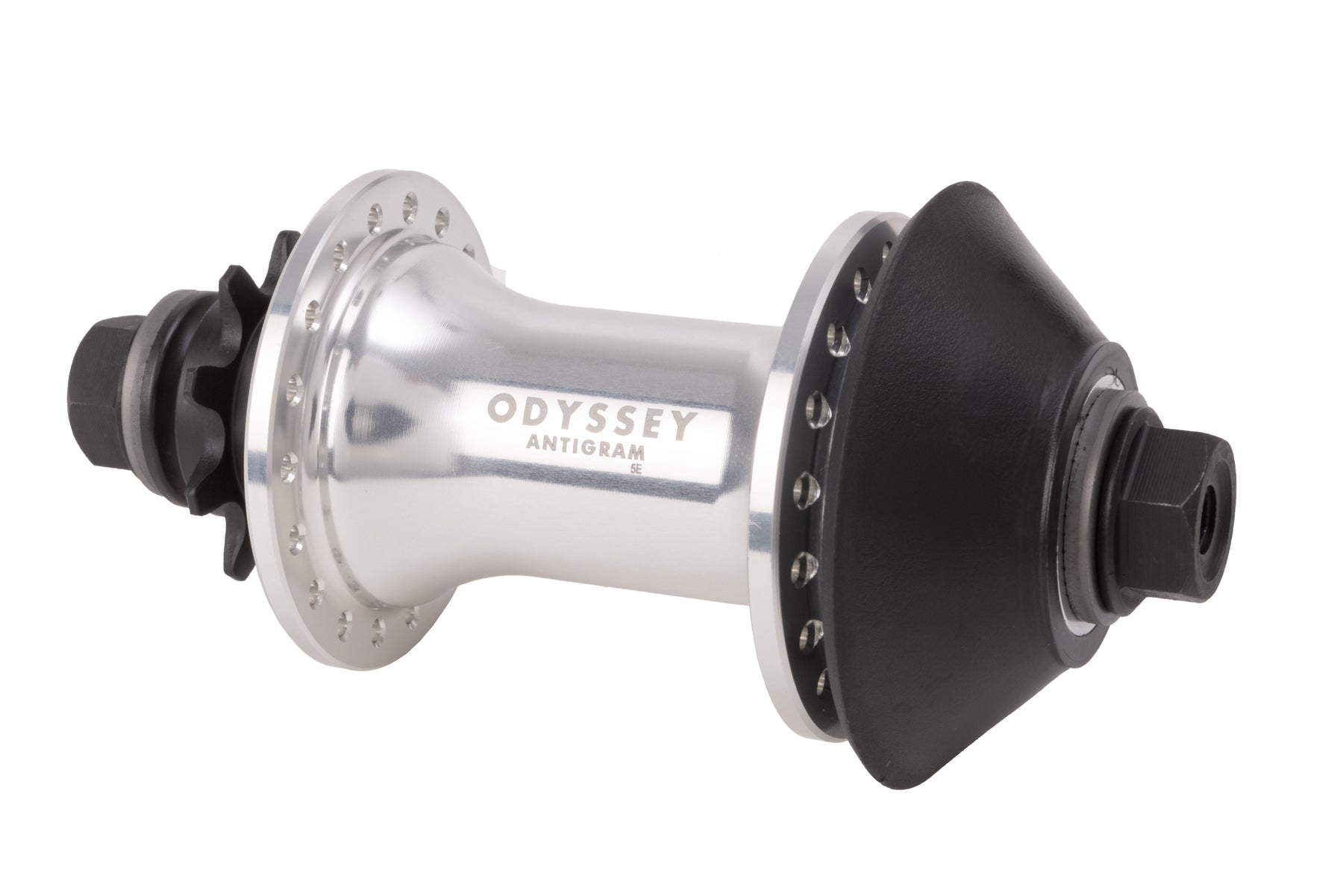

Anodised Silver

Style

Switch Drive

Axle Type

Female

Free shipping over £100

Low stock - 1 item left
Backordered, shipping soon

The Odyssey Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and now comes with a replaceable hub guard.

The Antigram v2 now uses the same hub guard as the Clutch v2 to address all your grinding needs.

Features

2014-T6 forged aluminum hub shell
6903RS sealed cartridge ball bearings
14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
9t driver with 3-Pawl independent springs design and precision caged needle bearings
RHD/LHD switchable

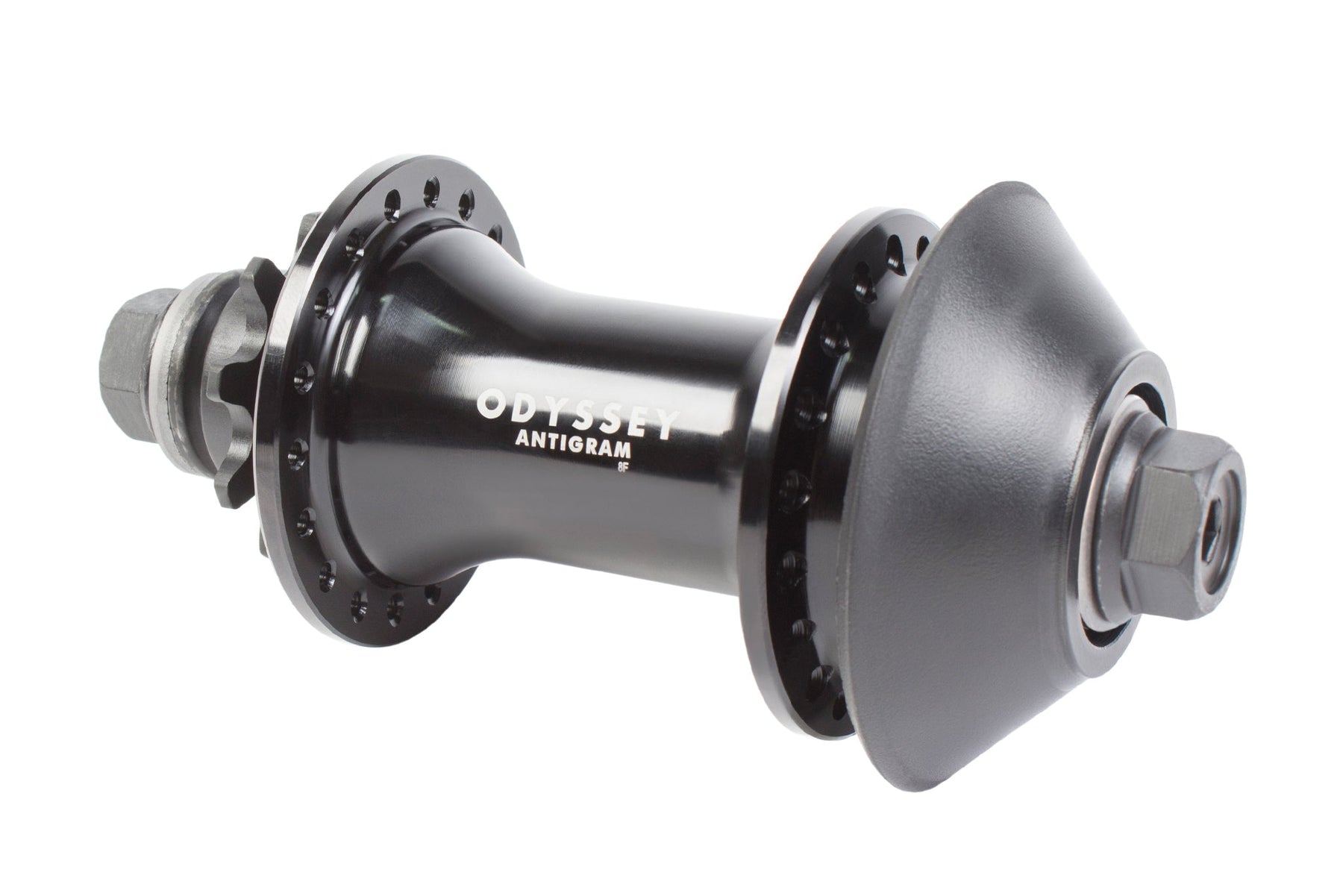

Replaceable plastic hub guard included

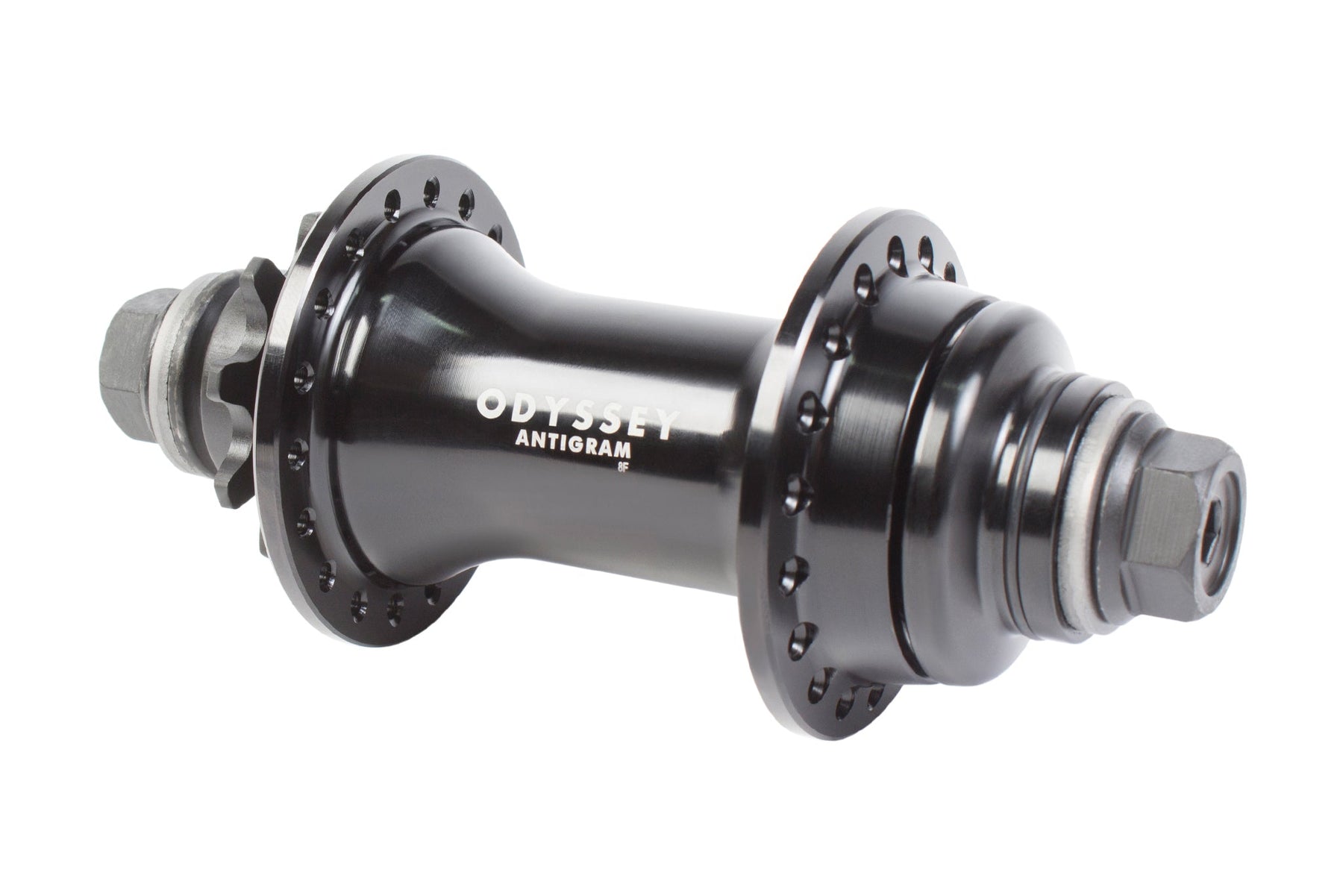

454g with guard and 436 without guard

Measurements

Drive Side Effective Flange Diameter: 49mm
Non-Drive Side Effective Flange Diameter: 49mm
Drive Side Flange to Center Distance: 30mm
Non-Drive Side Flange to Center Distance: 30mm

Also available as a complete rear wheel option laced to Hazard Lite rims.

Smaller items will be shipped Royal Mail Tracked Shipped same day if before 3.:00PM and in Stock

Larger Items will be sent DPD for Next day if ordered before 2:00 PM and are fully in stock at time.

For more info on shipping see bottom of the page.
