Sunday Darkwave 2023 Broc Raiford Midnight Purple
- Free shipping over £100
- Low stock - 4 items left
- Backordered, shipping soon

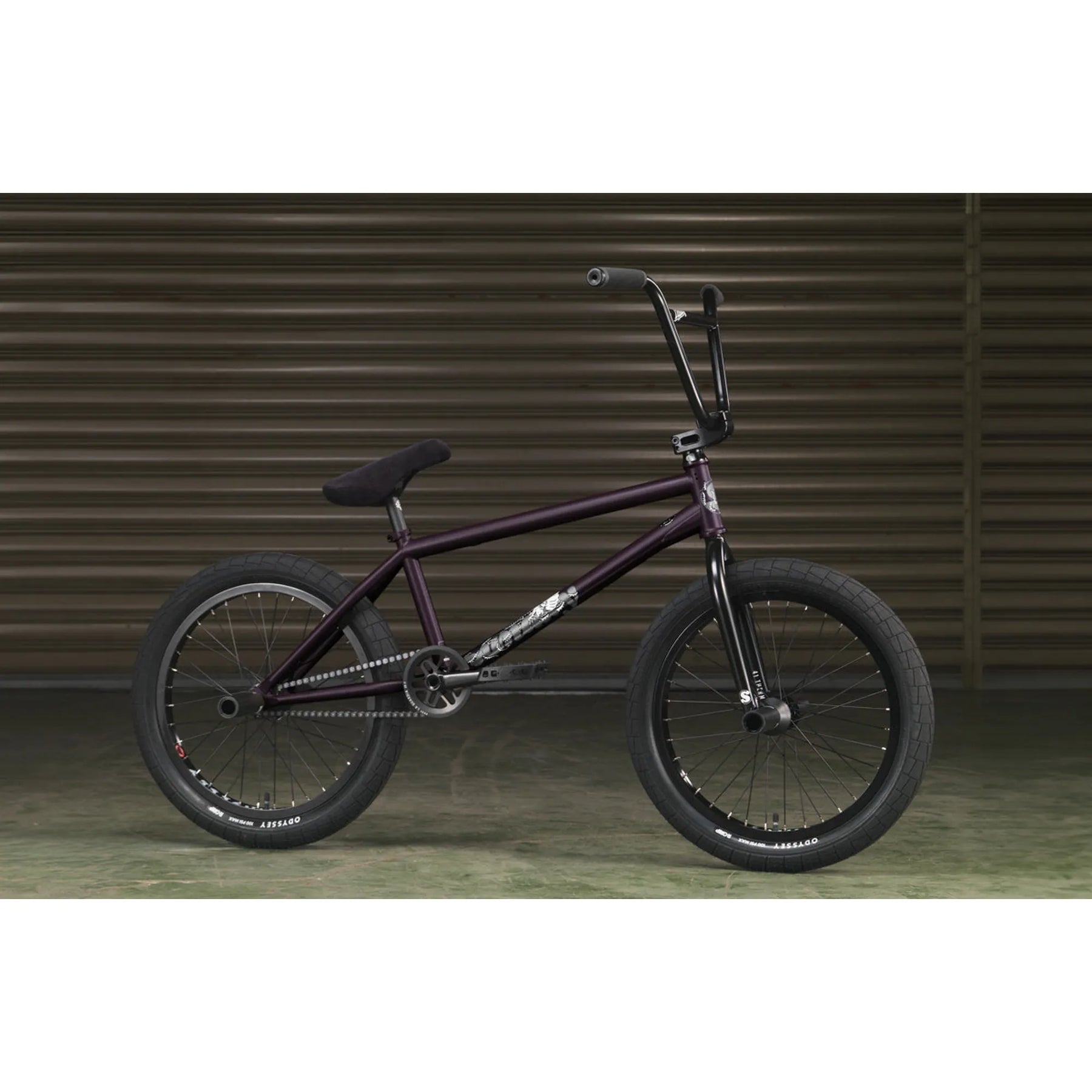

This is the Sunday Broc Raiford Darkwave Authentic.
This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey product, left hand drive setup and top tube size.
KEY FEATURES
- 100% Aftermarket Parts Kit
- Lifetime Warranty on Bars, Forks, and Cranks
- SundayDarkwave Frame
- Sunday Darkwave 41-Thermal Forks
- OdysseyBROC41-Thermal Bars
- Odyssey Thunderbolt 41-Thermal Cranks
- Odyssey Broc v2 Stem
- Odyssey Clutch v2 Freecoaster
- Odyssey Vandero Pro Front Hub
- Odyssey Hazard Lite Rims
- Odyssey Broc Tires with R-Grip
SPECIFICATIONS
Frame:Sunday Darkwave, 21" (RHD) or 21.25" (LHD), 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork:Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
Handlebar:OdysseyBROC Bar, 41-Thermal, aftermarket bar
Stem:OdysseyBROC V2 Stem, 50mm
Headset:Odyssey Pro Conical, 1-1/8"
HeadsetCap:Sunday aftermarket, aluminum
Brake Lever:Odyssey Springfield
Brakes:Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic
Grips:Odyssey Broc Raiford
Seat:Odyssey Broc Raiford Signature, Pivotal
Seat Alternate:Odyssey Big Stitch, Pivotal
Seatpost: OdysseyPivotal
Seat Clamp:Integrated
Sprocket:Odyssey La Guardia Sprocket, 28T
Cranks:Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal, LHD
BB Parts:Odyssey Sealed, Mid, 22mm
Pedals:Odyssey Twisted PC Pro
Rims:Odyssey Hazard Lite, 20", 36H
Front Hub:Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards
Rear Hub:Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD or LHD, non-drive side plastic guard
Spokes:14g steel, black
Tires:Odyssey Broc Tire, 20 x 2.4" (F & R)
Chain:Odyssey Bluebird Half-Link
Pegs:Sunday Seeley Peg 4.75" (x4)
Approx. Weight:24.97lbs (brakeless)
FRAME GEOMETRY
Top Tube Length:21" (RHD), 21.25" (LHD)
Head Tube Angle:75.25°
Seat Tube Angle:71°
Chainstay Length:13.25"-13.5”
Bottom Bracket Height:11.75"
Standover:9.25”
HANDLEBAR GEOMETRY
Rise:9.8"
Width:29"
Backsweep:10°
Upsweep:2°
